Dynam Detrum GAVIN-8C 8CH transmitter with SR86A-G Autopilot Receiver

Introduction

GAVIN-8C is a 2.4GHz 8-channel transmitter, applicable for airplane, helicopter and multi-copter. Based on the GAVIN-6C, GAVIN-8C adds the two channels and its response time achieves 2.6ms, even 8 channels it acts synchronously. Also, AA battery, Ni-MH battery and Li-Po battery all can be used in this transmitter to satisfy more customer needs.

Using the DSSS&FHSS dual spread spectrum technology,  will enhance the transmitter by increasing the anti-interference performance and transmission distance, even can controlled normally in city center, do not worry about the strong interference from high voltage lines, signal towers, city WiFi, etc.

SR86A is an 8-channel 2.4GHz receiver integrated with 6-axis gyro and suitable for normal wing, fly-wing, and V-tail airplanes. It provides four different flight modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance) and can be programmable from the matched transmitter.

Features

GAVIN-8C transmitter

- Applicable for airplane, helicopter and multi-copter.

- 30 model memory.

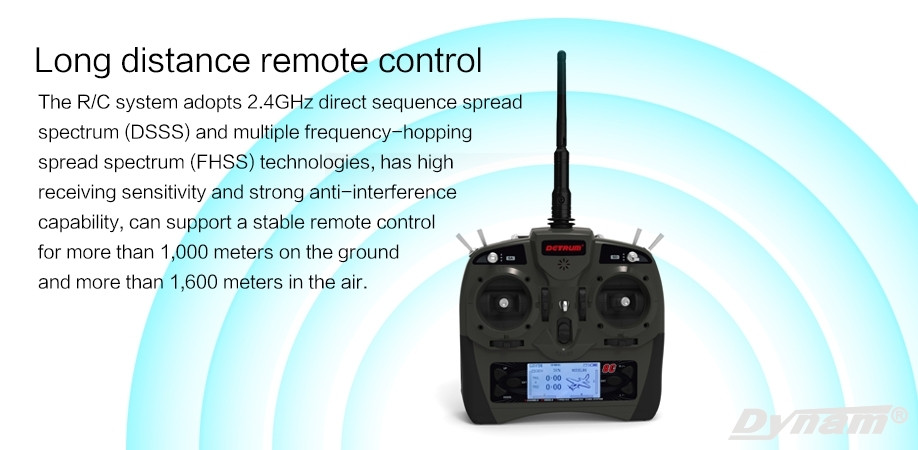

- Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping spread spectrum (FHSS) technology, the R/C system has high receiving sensitivity and strong anti-interference capability, can support a stable operating for more than 1km on the ground and more than 1.6km in the air.

- Adopting wireless chips, with extended power amplifier (PA) and low noise amplifier (LNA) can extremely improve the system output power and receiving sensitivity.

- Using all-band antenna on transmitter. The transmitting efficiency is greatly improved.

- Can experience a smooth flight operation by using the 4096 section precision sticks and selecting four stick modes.

- Achieving 2.6ms response time, even 8 channels it acts synchronously.

- USB upgrade function always keeps your GAVIN-6C the latest program.

- Support Fail Safe function, which could predefine the servo position by transmitter when receiver out of control.

- Trainer function make a skilled instructor can teach a student with fly skills.

- Can be used to set the programmable item of the flight controller for airplane.

- AA, Ni-MH and Li-Po battery all ca be used for customer.

Specifications

GAVIN-8C

Channel: 8-channel

Transmitting frequency: 2.4GHz

Power supply: AA batteries 4*1.5V, Ni-MH batteries 4*1.2V, 2S Li-Po

Consuming current: less than or equal to 120mA (test mode); less than or equal to 230mA (operating mode).

Output power: 10mW (test mode); 100mW (operating mode).

Output pulse: 1000ms~2000ms (neutral 1500ms)

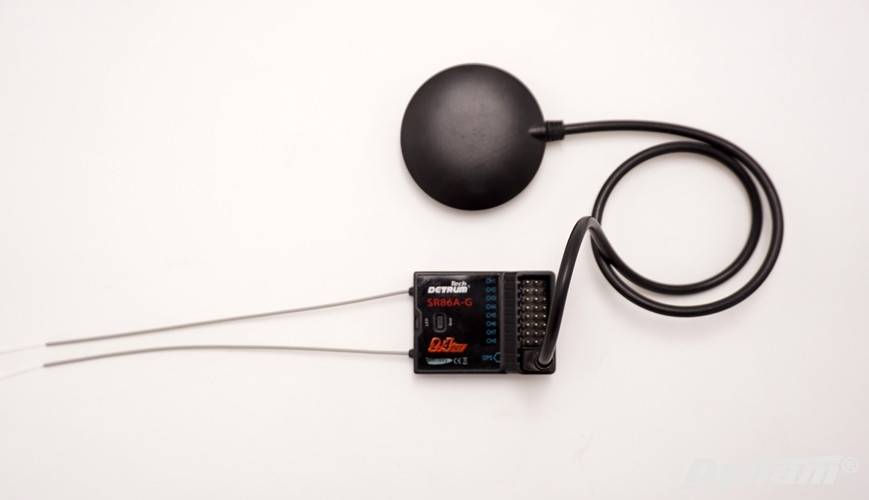

SR86A-G smart receiver with GPS

Features

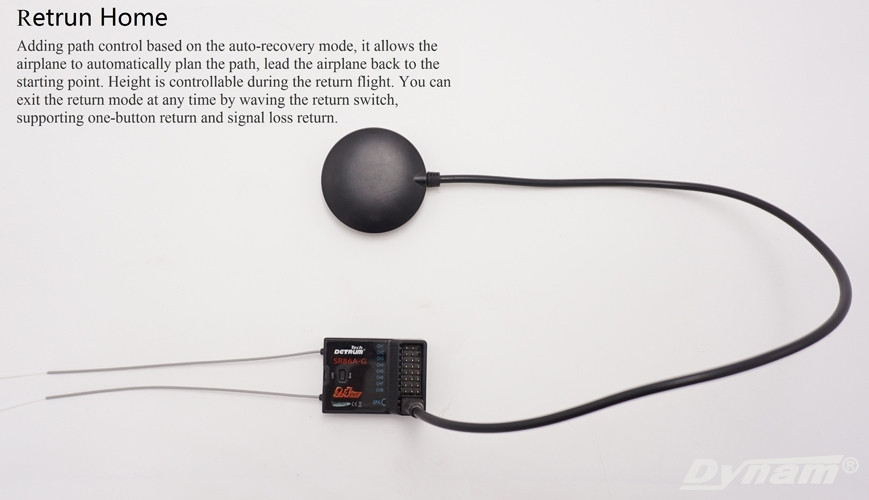

Return Home

Adding path control based on the auto-recovery mode, it allows the airplane to automatically plan the path, lead the airplane back to the starting point. Height is controllable during the return flight. You can exit the return mode at any time by waving the return switch, supporting one-button return and signal loss return.

Main Control IC

32-bit high-performance ARM core processor, 6-axis MEMS gyro chipset

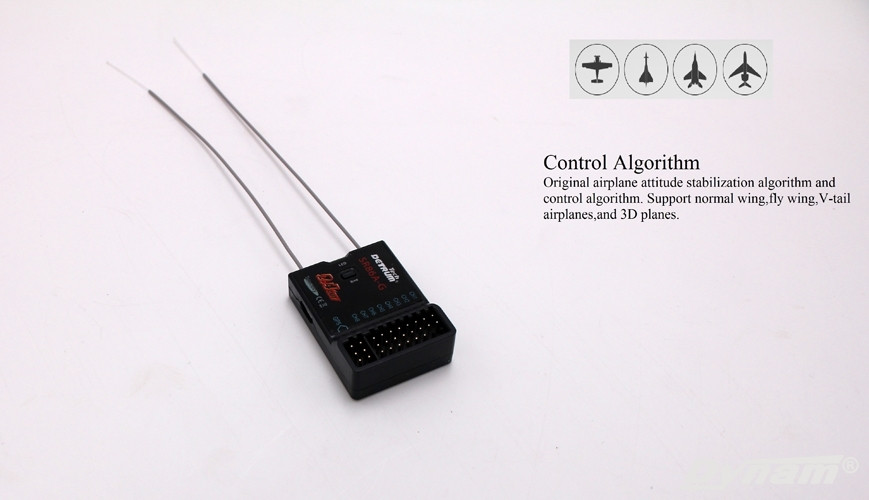

Control Algorithm

Original airplane attitude stabilization algorithm and control algorithm. Support normal wing, fly wing, V-tail airplanes, and 3D planes.

Flight Mode

Four flight modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance). You can switch between different modes by the toggle switch.

Adjusting the Gain

Set the gain and other programmable items with matched transmitter.

High Sensitivity

SR86A adopts 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping (FHSS) technologies, having high receiving sensitivity and strong anti-interference capability.

Diversity Antenna

By using diversity antenna, combined with the signal detection and switching algorithm, the receiving signal is stable and reliable.

Unique ID Code

Once the binding is made, the ID code is stored in the receiver and no further binding is necessary after restarting the receiver.

Output Signals

8-channel PWM
