Dynam Detrum SR86A 8CH receiver with Istone stabalizer (W/ ABS system) DTM-R003

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
  • Image 9
  • Image 10
  • Image 11
  • Image 12
Price:
$67.91
SKU:
DTM-R003
Brand:
Weight:
0.07 KGS
Shipping:
Calculated at checkout
Quantity:


Product Description

Dynam Detrum SR86A 8CH receiver with Istone stabalizer (W/ ABS system) for GACIN-6C and GAVIN-8C(Click for check)

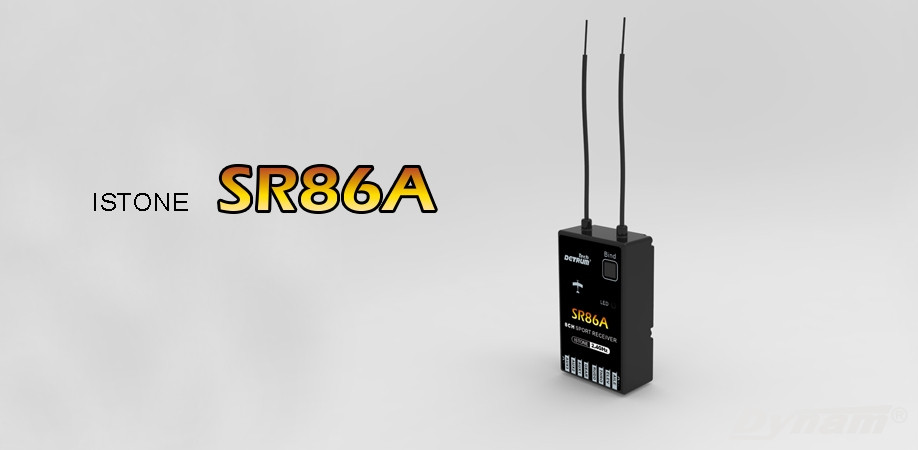

SR86A sport receiver

Features

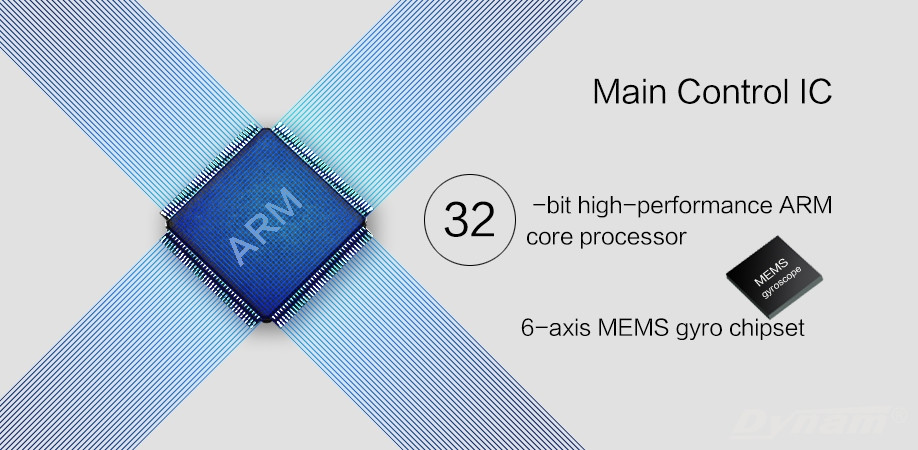

Main Control IC

32-bit high-performance ARM core processor, 6-axis MEMS gyro chipset

Control Algorithm

Original airplane attitude stabilization algorithm and control algorithm. Support normal wing, fly wing, V-tail airplanes, and 3D planes.

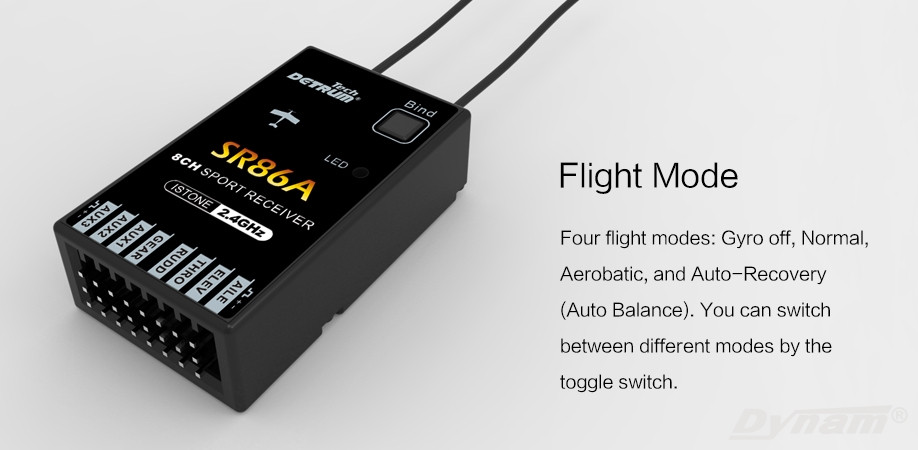

Flight Mode

Four flight modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance). You can switch between different modes by the toggle switch.

Adjusting the Gain

Set the gain and other programmable items with matched transmitter.

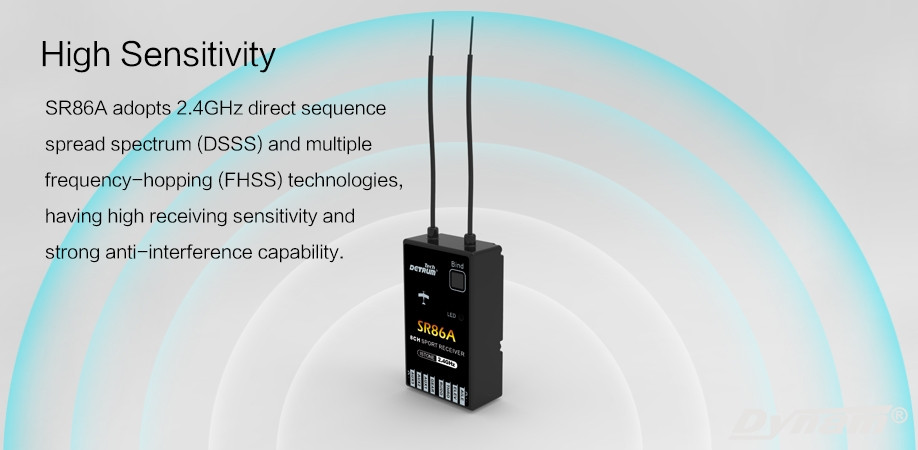

High Sensitivity

SR86A adopts 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping (FHSS) technologies, having high receiving sensitivity and strong anti-interference capability.

Diversity Antenna

By using diversity antenna, combined with the signal detection and switching algorithm, the receiving signal is stable and reliable.

Unique ID Code

Once the binding is made, the ID code is stored in the receiver and no further binding is necessary after restarting the receiver.

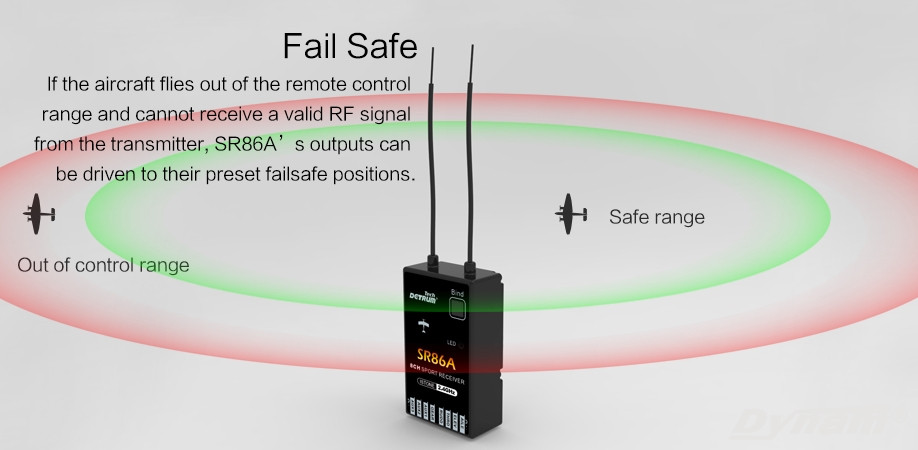

Fail Safe

If the aircraft flies out of the remote control range and cannot receive a valid RF signal from the transmitter, SR86A’s outputs can be driven to their preset failsafe positions.

Output Signals

8-channel PWM

Specifications



Channels

8-channel

Sensor

6-axis gyro

Sensitivity

-97dBm

Output

PWM (71Hz)

Transmission Range

More than 1,000 meters on the ground,   more than 1,600 meters in the air

Input Voltage

3.6V ~ 16V

Size

51mm*28.4mm*14.5mm

Weight

15g
