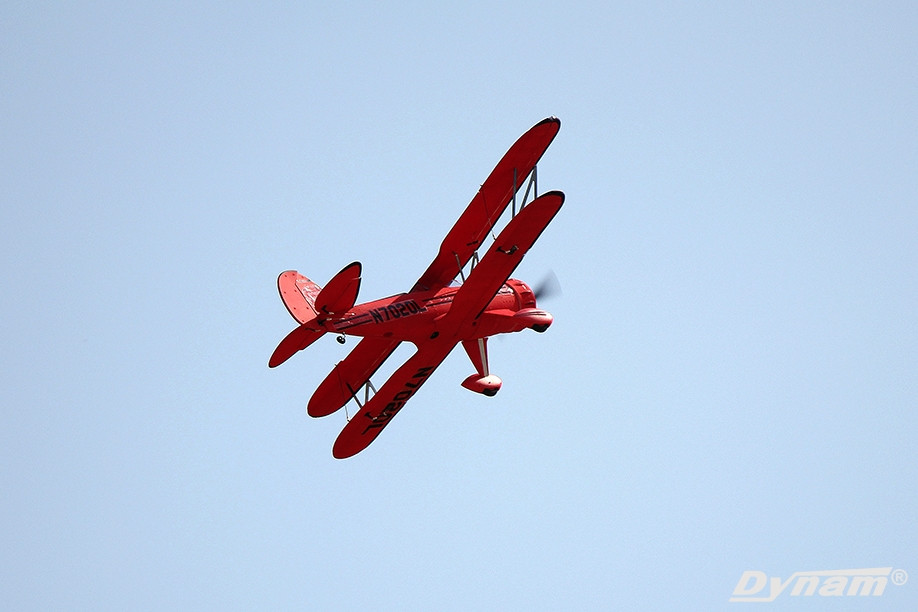

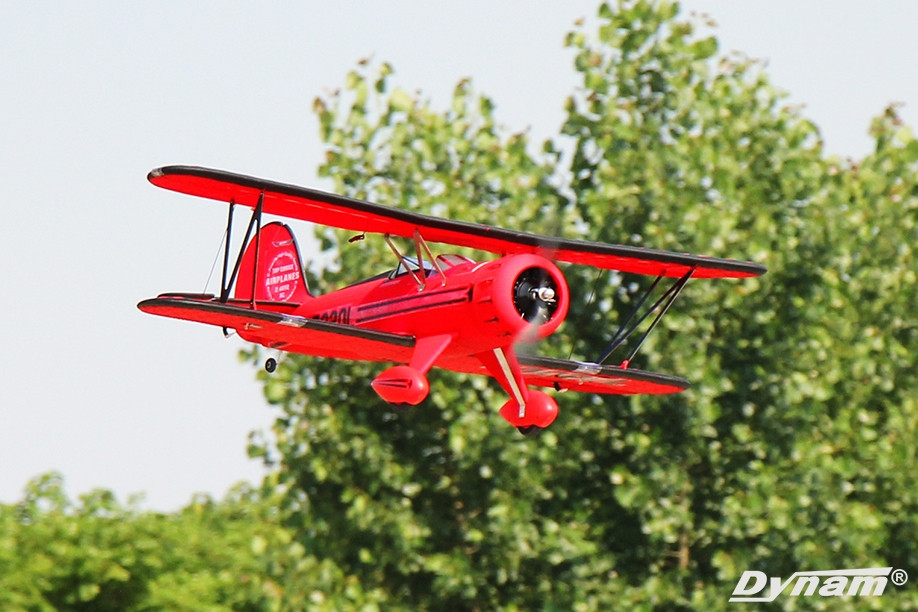

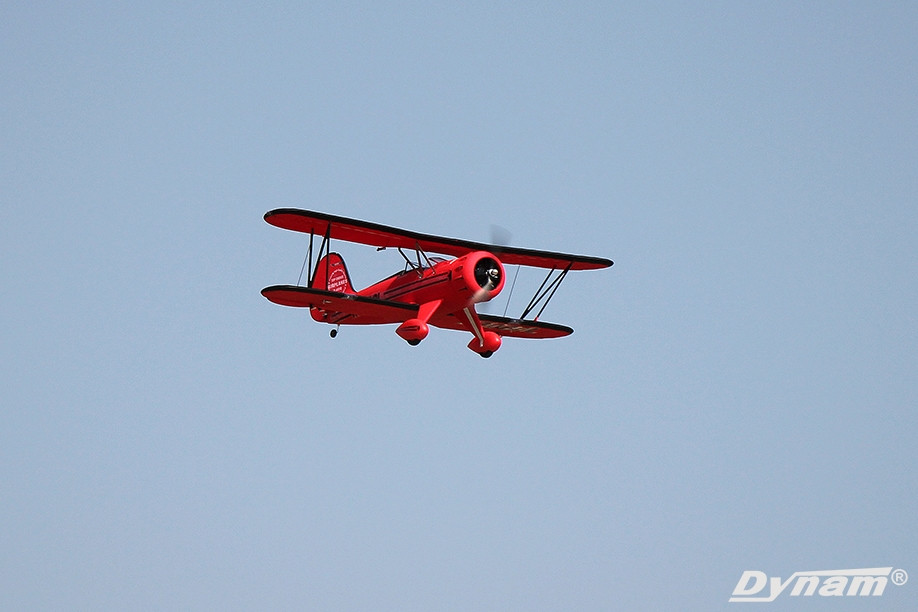

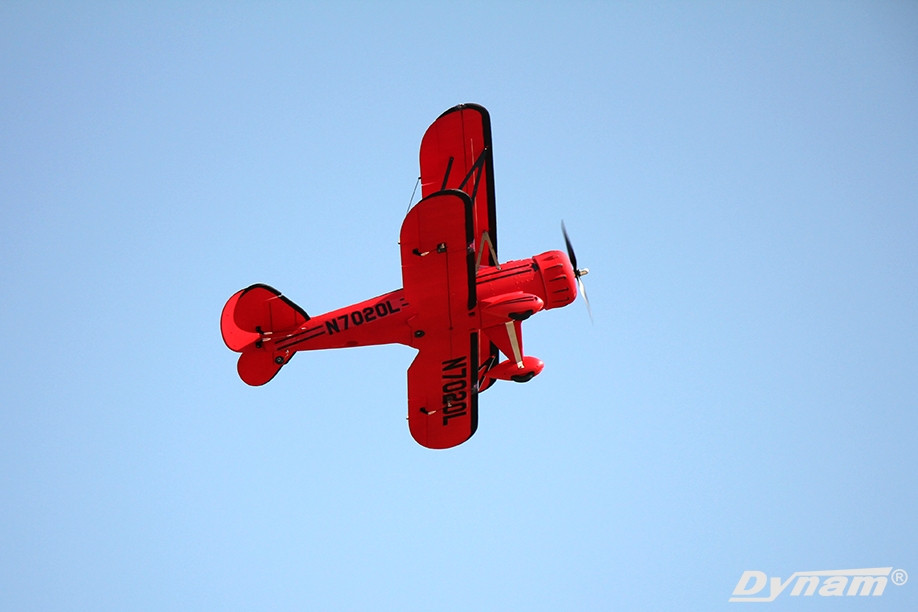

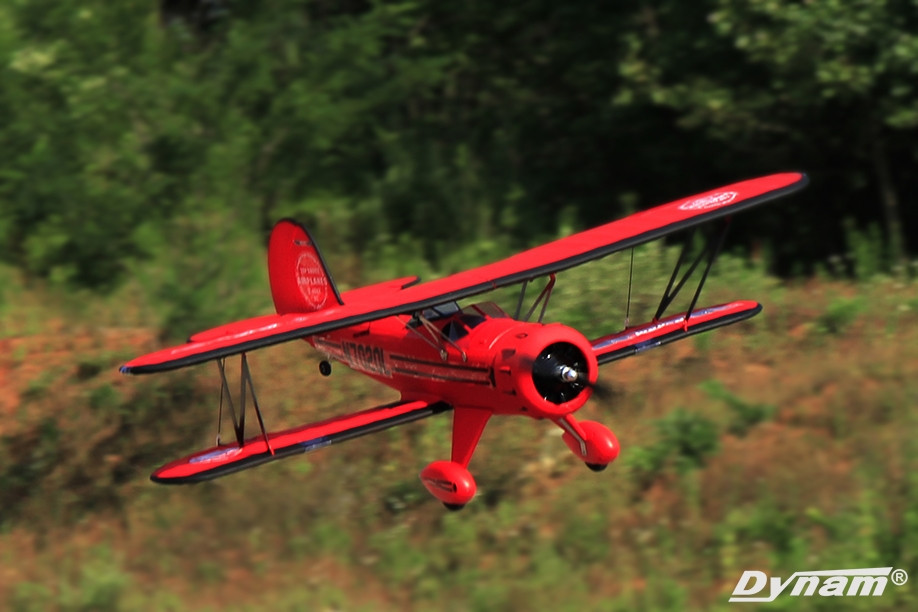

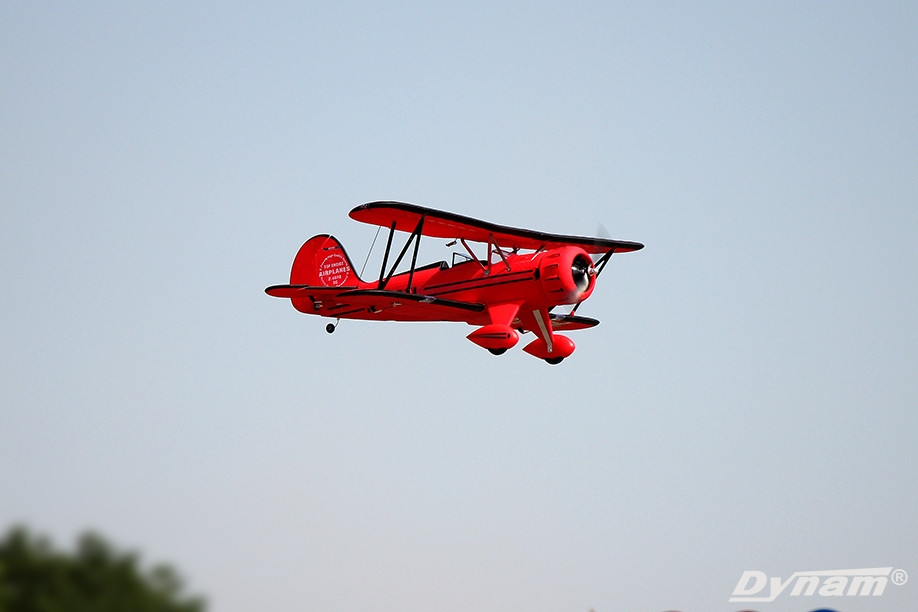

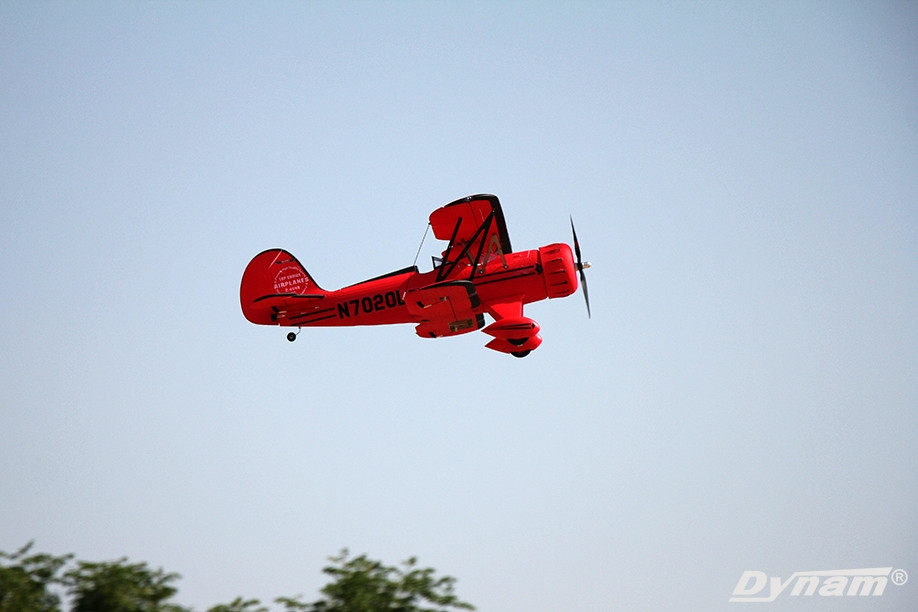

Dynam Waco Red 1270mm Wingspan Biplanes

Overview

The Dynam Waco YMF-5 is a classic open cockpit biplane. It has excellent handling capabilities on both low and high speed. The stock power system provides plenty of power to do aerobatics such as vertical climbs, turning somersaults, flying upside down and so on.

Key Features

- 1270mm wingspan, great ascensional force

- Classic biplane

- Dual cockpit, scale decal set

Specifications

Wingspan: 1270mm(50in)

Overall Length: 983mm(38.7in)

Wing Loading: 38.5g/d㎡

Servo: 9g×4pcs

Battery: 14.8V 2200mAh 25C with XT60 Plug (Required)

ESC: 40A ESC with 3A BEC

Motor: BM3720A-KV650 Brushless

Flying Weight: 1550g

CG (Center of Gravity): 70-75mm from the leading edge of the top wing

Required Radio: 4 Channel (Required)

Skill Level: Intermediate

Recommended Environment: Outdoor

Build Time: 3+ Hours

Version for your reference:

1) SRTF (Inc. GAVIN-6A TX+RX with 6-Axis Gyro) INCLUDES:

• Dynam Waco Red EPO 1270mm Wingspan Biplanes  - (RTF)

• Servo: 9g*4pcs

• Battery: 14.8V 2200mAh 25C Lipo battery

• ESC: 40A ESC with 3A BEC with XT60 connector

• Brushless motor: BM3720A-KV650 Outrunner

• Charger: Supermate 4 blanace charger+2A adaptor

• Radio: GAVIN-6A 6CH 2.4G TX (Click for detail)

• Receiver: Detrum MSR66A 6-Channel 2.4Ghz Mini Receiver with iStone 6-Axis Gyro/ABS (Click for detail)

• Decal set

REQUIRES:

• Nothing!  Everything you need to fly is included in the box.

2) SRTF (Inc. GAVIN-6C TX+RX with 6-Axis Gyro) INCLUDES:

• Dynam Waco Red EPO 1270mm Wingspan Biplanes  - (RTF)

• Servo: 9g*4pcs

• Battery: 14.8V 2200mAh 25C Lipo battery

• ESC: 40A ESC with 3A BEC with XT60 connector

• Brushless motor: BM3720A-KV650 Outrunner

• Charger: Supermate 4 blanace charger+2A adaptor

• Radio: GAVIN-6C 6CH 2.4G TX (Click for detail)

• Receiver: Detrum MSR66A 6-Channel 2.4Ghz Mini Receiver with iStone 6-Axis Gyro/ABS (Click for detail)

• Decal set

REQUIRES:

• Nothing!  Everything you need to fly is included in the box.

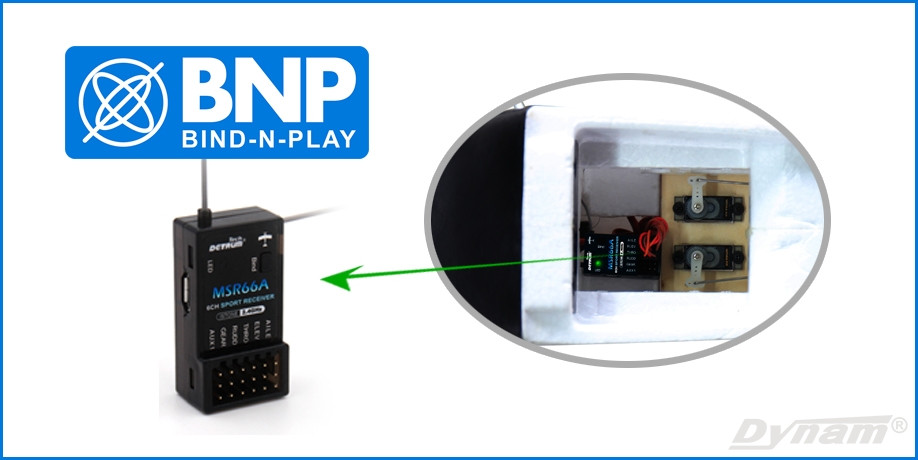

3) BNP (PNP+2.4G receiver with 6-Axis Gyro w/ABS)

• Dynam Waco Red EPO 1270mm Wingspan Biplanes  - (PNP)


• Servo: 9g*4pcs

• ESC: 40A ESC with 3A BEC with XT60 connector

• Brushless motor: BM3720A-KV650 Outrunner

• Receiver: Detrum MSR66A 6-Channel 2.4Ghz Mini Receiver with iStone 6-Axis Gyro/ABS (Click for detail)

• Decal set

REQUIRED:

• Battery: 14.8V 2200mAh 25C Lipo battery,

• Charger: 4S Charger

• Required Radio: 6+ Channel 2.4Ghz, Click here check in our radio catelogo

4) PNP

• Dynam Waco Red EPO 1270mm Wingspan Biplanes  - (PNP)


• Servo: 9g*4pcs

• ESC: 40A ESC with 3A BEC with XT60 connector

• Brushless motor: BM3720A-KV650 Outrunner

• Decal set

REQUIRED:

• Battery: 14.8V 2200mAh 25C Lipo battery,

• Charger: 4S Charger

• Required Radio set: 6+ Channel 2.4Ghz , Click here check in our radio catelogo
