Product Description

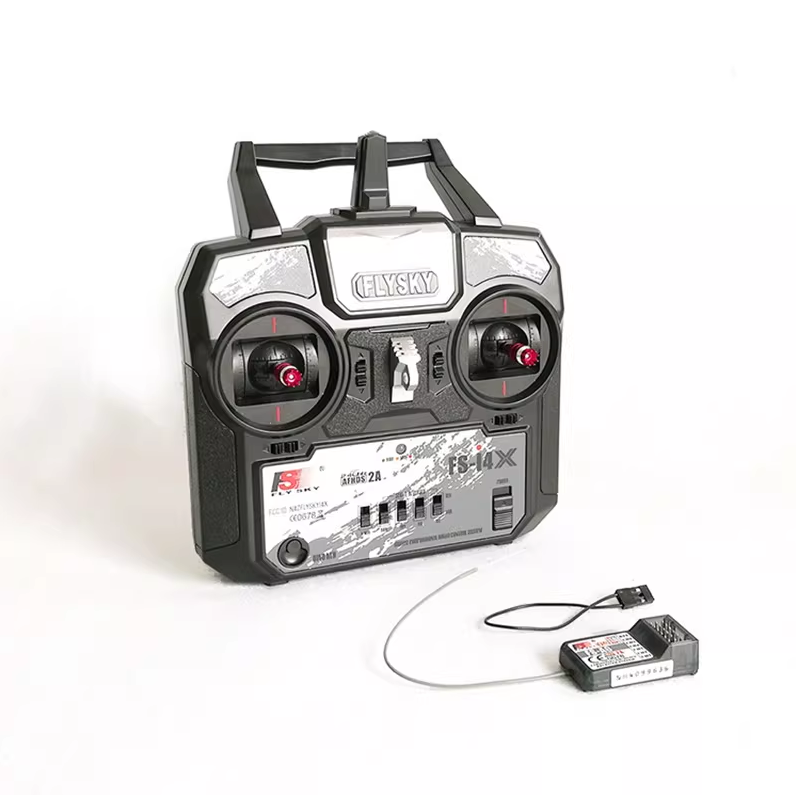

Flysky FS-i4X 2.4Ghz 4 Channel Transmitter & FS-A6 Receiver
FS-I4X Transmitter Specification：
FS-i4X is an entry-level transmitter built for fixed-wing / glider / boat with channel reverse and channel mixing functionality. It features the AFHDS2A protocol and can support up to 10 channels through DIY upgrades.
-
AFHDS2A and AFHDS protocol
-
Has channel reverse and channel mixing functionality
-
Supports up to 10-channels through DIY upgrades
Product Model: FS- i4X
Channels: 4-10 (default 4 channels)
Models: Fixed Wing / Glider / Boat
Wireless frequency: 2.4GHz
Transmission power: <20 dBm
Wireless protocol: AFHDS 2A
Range: 500 ～ 1500m (in the air)
Channel resolution: 1024
Battery: 1.5AA * 4
Charging port: None
Low voltage alarm: ＜ 4.2V
Antenna type: single antenna
Data port: PS / 2 (PPM)
Temperature range: 0 ℃ — + 60 ℃
Humidity range: 20% -95%
Online update: No
Color: Black
Dimensions: 174x89x190mm
Weight: 323g
Certification: CE, RCM, FCC ID: N4ZFLYSKYI4

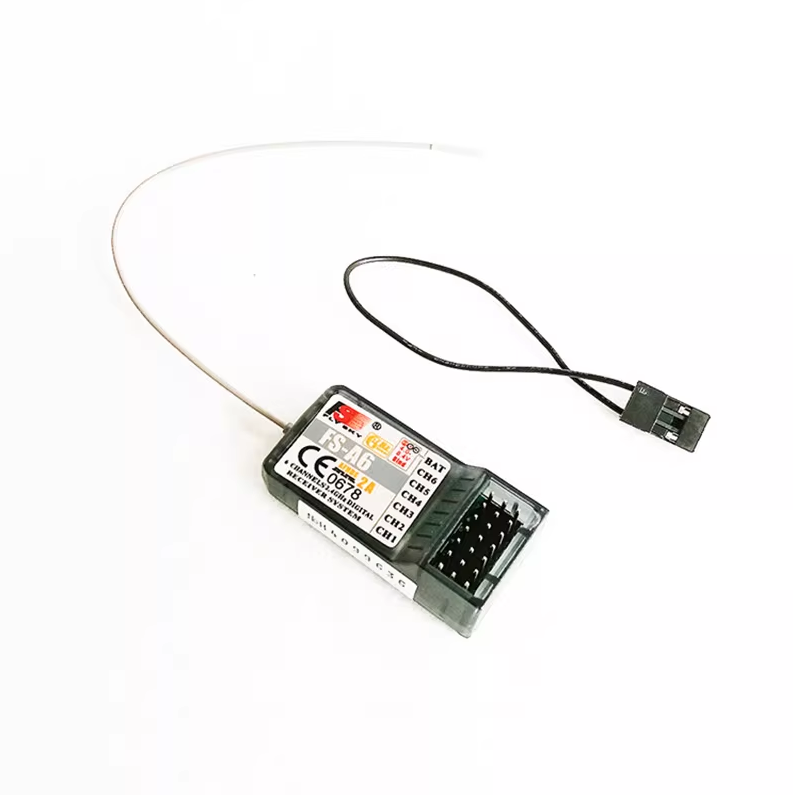

FS-A6 Receiver specification:
Product Model: FS-A6
PWM channels: 6
Wireless frequency: 2.4GHz
Wireless protocol: AFHDS 2A
Range: 500 ～ 1500m (in the air)
Antenna type: single antenna (150mm)
Power: 4.0-6.5V
RSSI: Not supported
Data port: PWM
Temperature range: 0 ℃ — + 60 ℃
Humidity range: 20% -95%
Online update: No
Dimensions: 45 * 23 * 9 mm
Weight: 13 g
Certification: CE, FCC, RCM
