Product Description
FMS 5.8G Analog FPV Set FPVALSET01
Top Highlights
- Plug-And-Play Operation
- Auto-Frequency Scanning For Quick Setup
- Compatibility With Most RC Models
Description
FMS 5.8GHz Analog FPV System is a simple and user-friendly entry-level FPV setup.

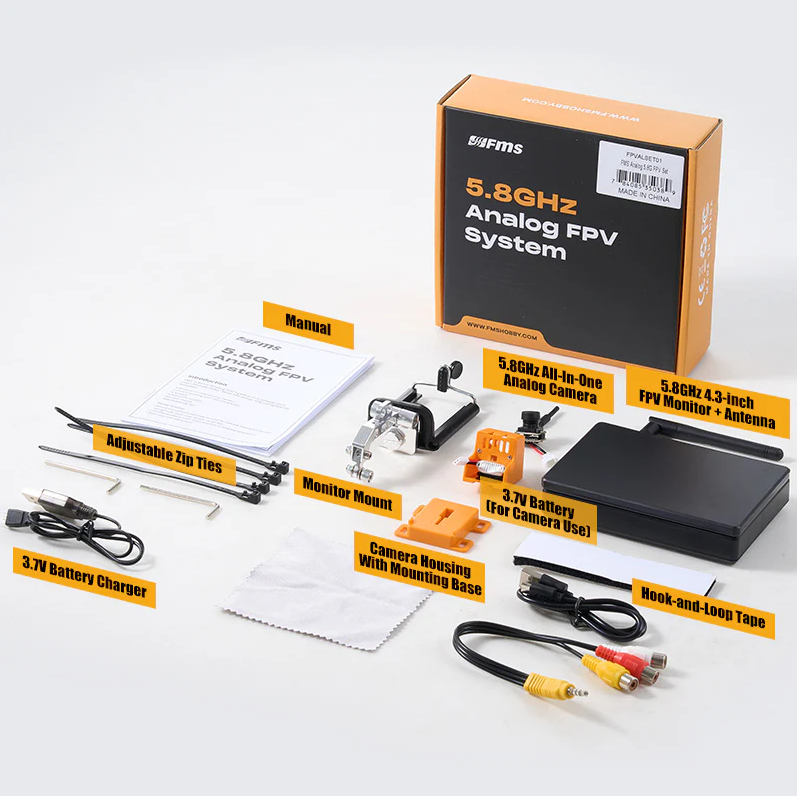

What's in the box:
- 1 x 5.8GHz 4.3-inch FPV Monitor + Antenna
- 1 x 5.8GHz All-In-One Analog Camera
- 1 x Camera Housing With Mounting Base
- 1 x Monitor Mount
- 1 x 3.7V Battery (For Camera Use)
- 1 x 3.7V Battery Charger
- 1 x Hook-and-Loop Tape
- 1 x Adjustable Zip Ties
- 1 x Manual
How to Set Up:

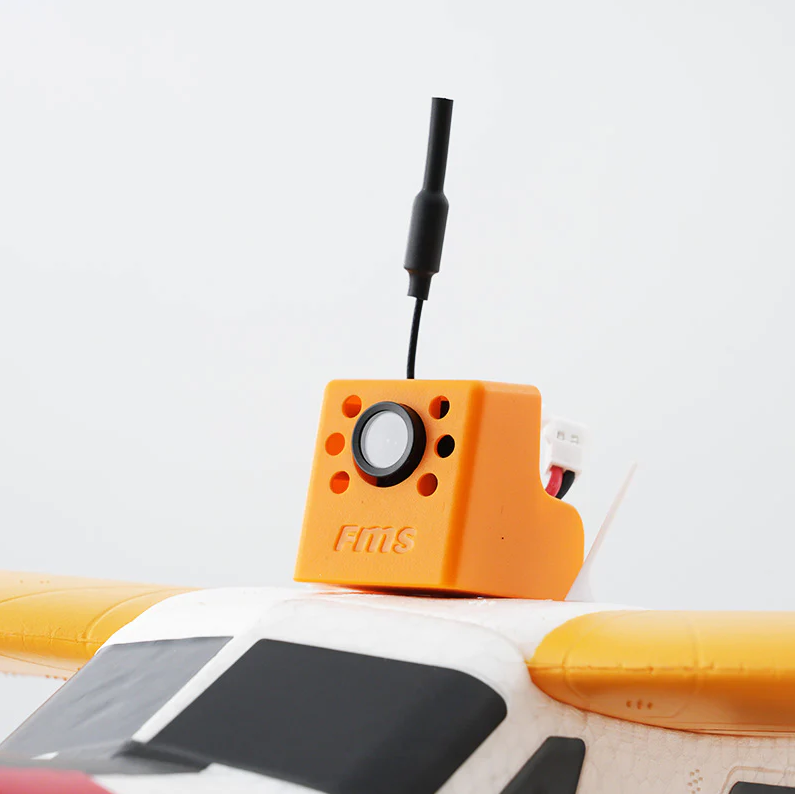

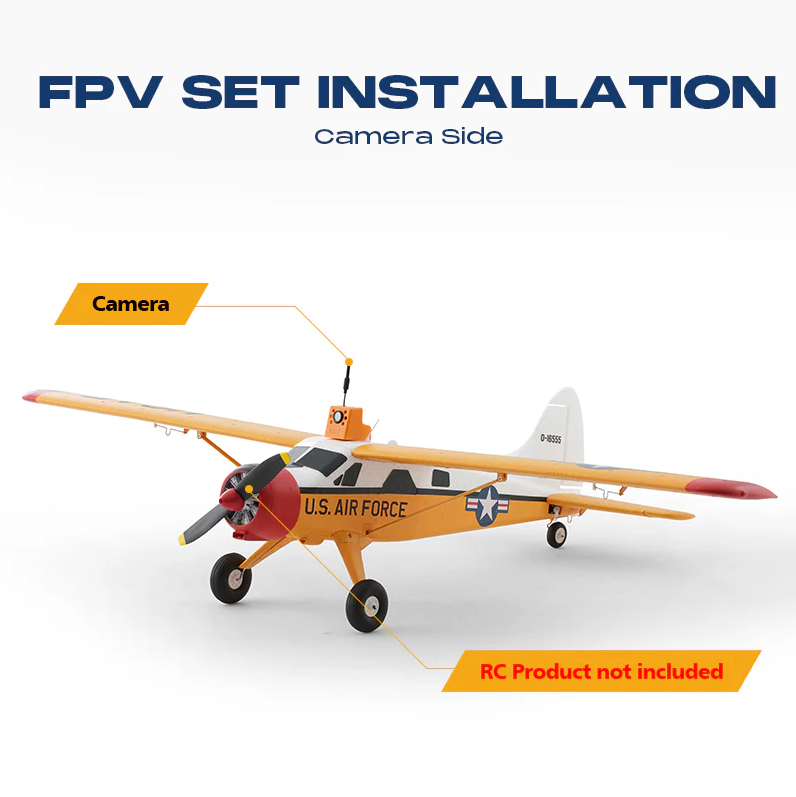

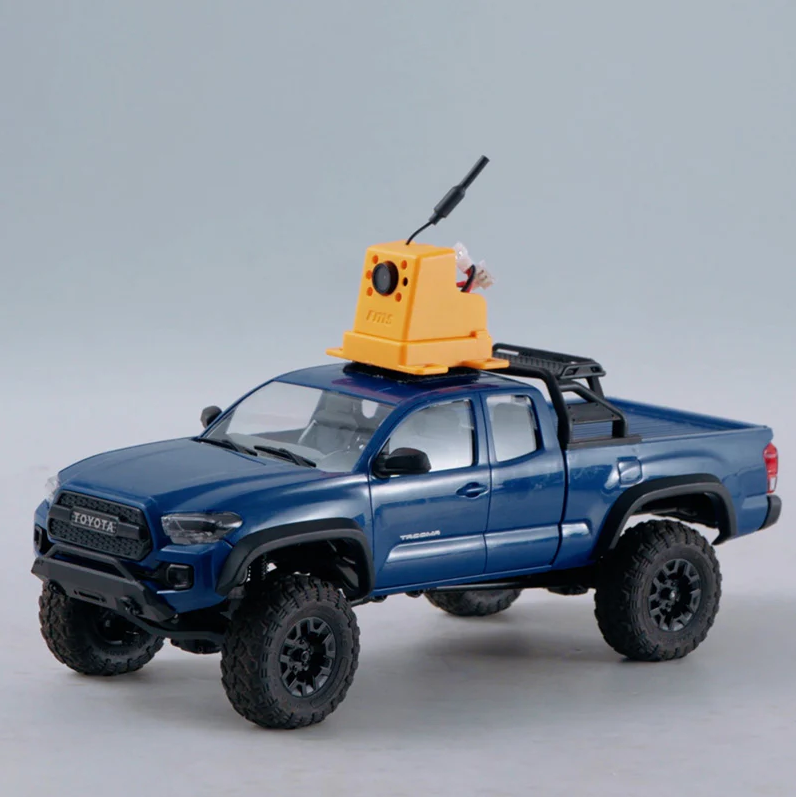

1. Securely mount the camera on your RC vehicle (drone/car/boat) using the included hook-and-loop straps or zip ties.

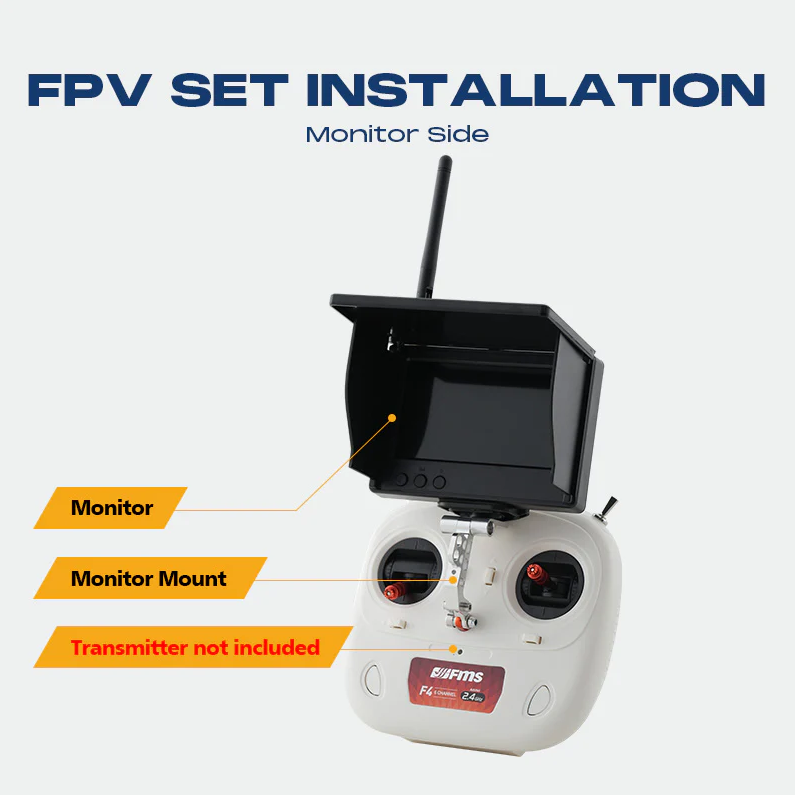

2. Install the antenna before powering on the monitor, then use the auto-scan function to find the frequency.
3. Begin your FPV adventure!
Q&A:
1. Why doesn??£¤t the image look as clear as I expected?
Analog video transmission has lower resolution compared to HD systems, resulting in less sharpness. However, it offers low latency, making it great for close-range FPV (within 100 meters).
2. Why is the screen flickering and showing static (snow)?
This could be due to environmental interference. Try moving the screen further away from Wi-Fi routers or the transmitter. You can also switch the video transmission band or channel to see if that helps (check the manual for how to change the channel).
3. Why does the image look so blurry?
The camera??£¤s focus might not be properly adjusted. Try rotating the lens clockwise or counterclockwise until the image comes into sharp focus.
4. What is the operating endurance of the monitor and camera?
When fully charged, the monitor lasts up to 3 hours, while the camera provides up to 20 minutes of use.
5. What??£¤s the signal range of the 5.8GHz Analog FPV System?
The effective range is up to 150 meters in open areas without interference.
FPV Monitor Specification:
Screen Size:4.3 inches
Resolution: 480*272 pixels
Aspect Ratio: 16:9
Brightness: 500 cd/m2
Input Format: NTSC/PAL Auto-Switch
AV Interface: 3.5mm analog video
Operating Voltage: 5V DC
Charging Port: Micro-USB 5V/2A
Battery Capacity: 3.7V 2500mAh Li-ion
Frequency Range: 4990-5945 MHz
Channels: 56 channels
Sensitivity: -90dBm
Antenna Connector: RP-SMA (inner pin)
Dimensions: 123*85*26 mm
OSD Display: Signal strength/Battery/CH
Auto-Scan: One-button frequency search
Camera Specification:
Antenna Type: Copper tube
Working Current: 220mA
Voltage Range: 2.5-5.5V (5V typ.)
Dimensions: 13.5*15.9*17.2mm
Weight: 3.6g
RF Power: 25mW
Channels: 48CH
Camera: 120?? FOV, 600TVL
Lens: f=1.4mm
Video: Standard PAL
