Product Description

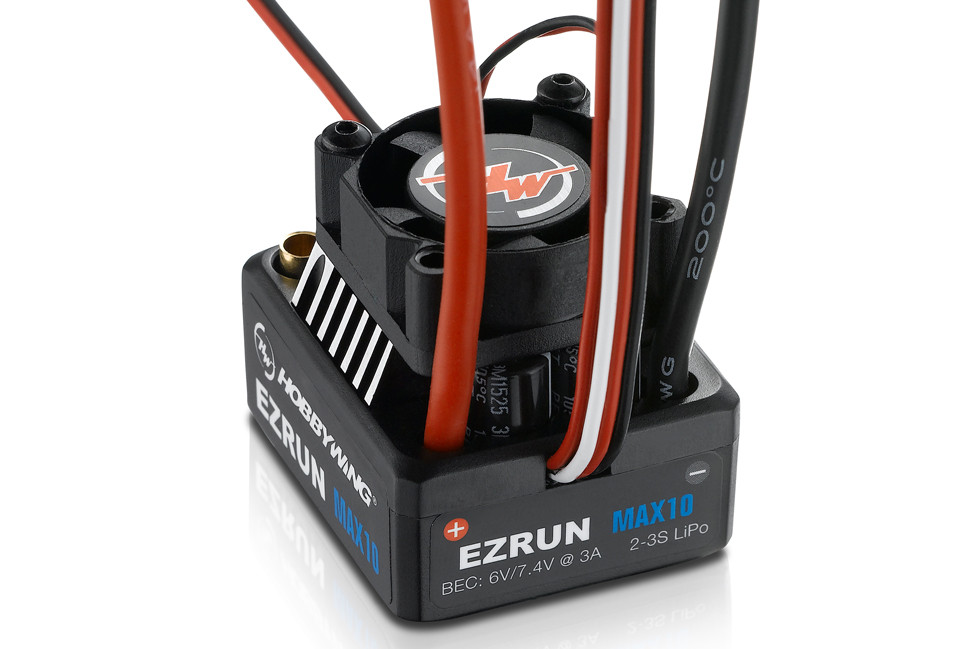

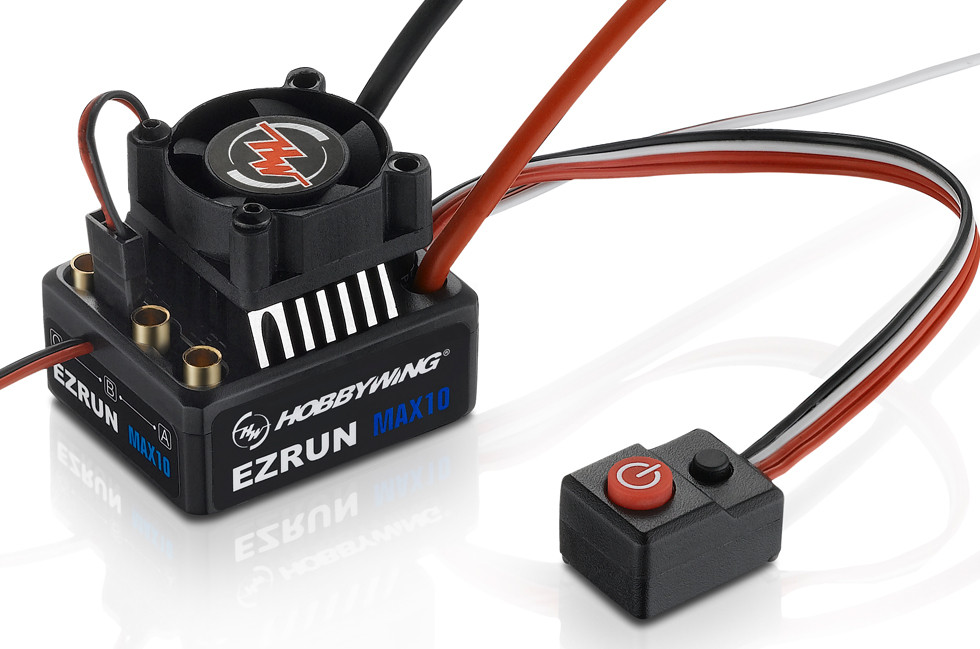

Hobbywing EzRun MAX10 60A Waterproof Brushless ESC 30102602 for 1/10 RC Car
Specification:
Cont./Peak Current: 60A/450A
Input Voltage: 2-3S LiPo/6-9 Cells NiMH

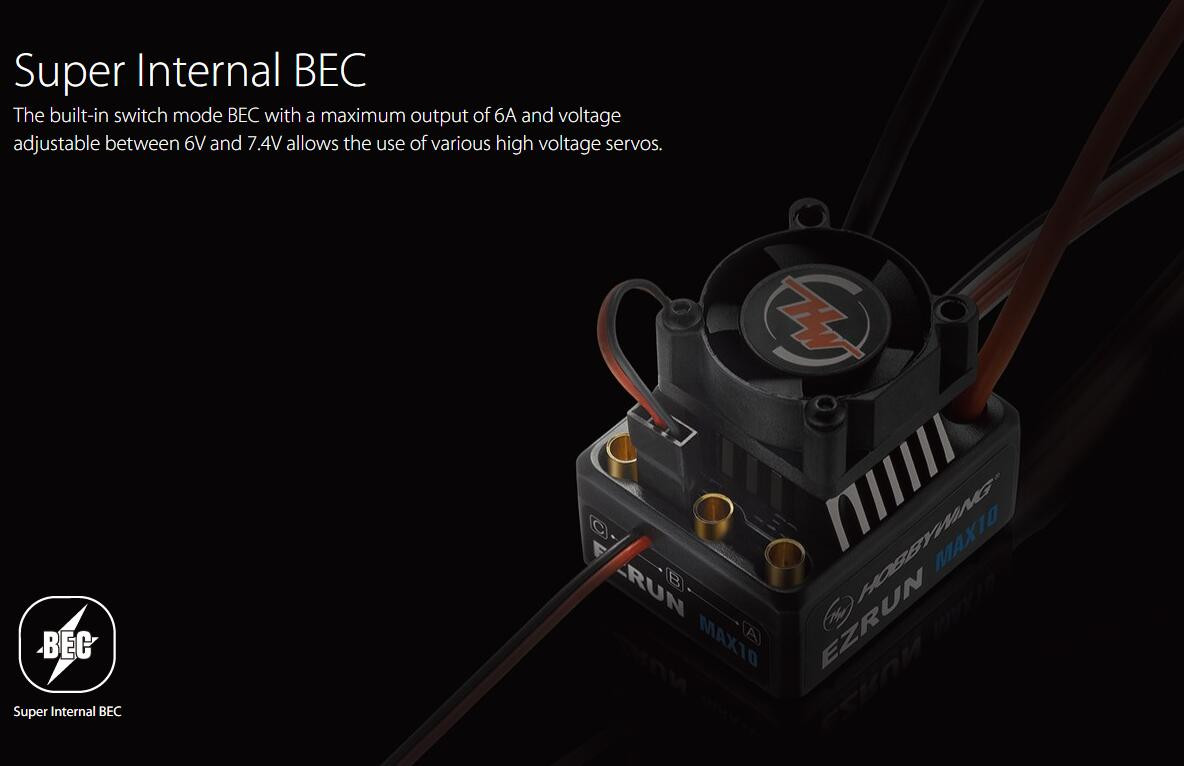

BEC Output: Switch Mode: 6V/7.4V,3A
Input Wires: Red-14AWG-200mm*1/Black-14AWG-200mm*1
Output Wires: Black-14AWG-200mm*3
Input Connectors: No
Output Connectors: 3.5 Bullet Connectors (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)
Fan Size: 25.0x25.0x10.0mm
Fan Voltage Range: 5-7.4V
Fan Powered by: BEC
Applications:
Motors: SL BL Motors/SD BL Motors (only in SL mode)
Vehicles: 1/10th Buggy, On-road, and Light-weight 2WD SCT, Truck and Monster Truck
KV Rating / T count: 2S Lipo 3652size, KV≤6000; 3S Lipo 3652size, KV≤4000
